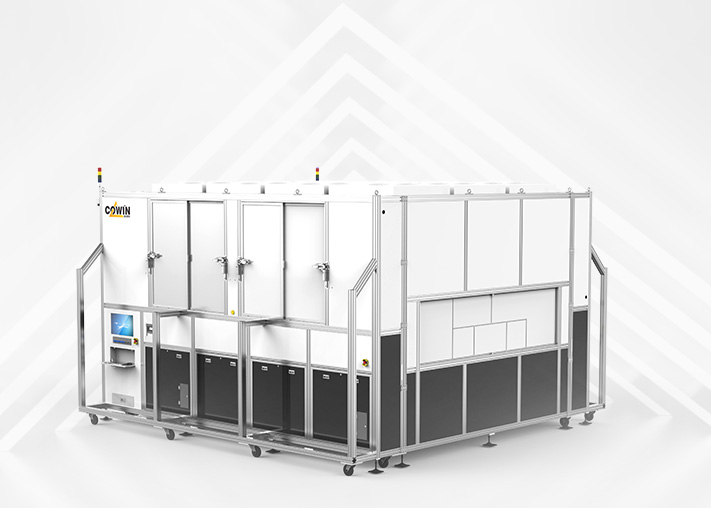

G10.5 Array Repair
Device technology core
-High-precision laser control technology
-Automatic maintenance technology
-FSM technology
-CVD Alloy technology (Keyun patent)
-Ag/PR INK technology
-Low cost 1μm Cut technology
Equipment application scenarios
-Display panel industry array process metal circuit breaker repair
-Repair of metal circuit residues in the array process of the display panel industry
-Repair of photoresist residues in the array process of the display panel industry
-Applied to G10.5 generation line, glass substrate size 3370×2940mm
| 產(chǎn)品 | G10.5 Array Repair |
| Array:2Cycle： | AG Line Inkjet Process =>2Cycle +線寬（7um）+膜厚（＞1500A） |
| Inline Ink | 140s |
| Final Ink | 200s |
| Array CUT | 1點 42s |
| Array CVD： | Line CVD Processing=>2cycel+線寬（5um）+厚度（＞2000A）120s 126s |
